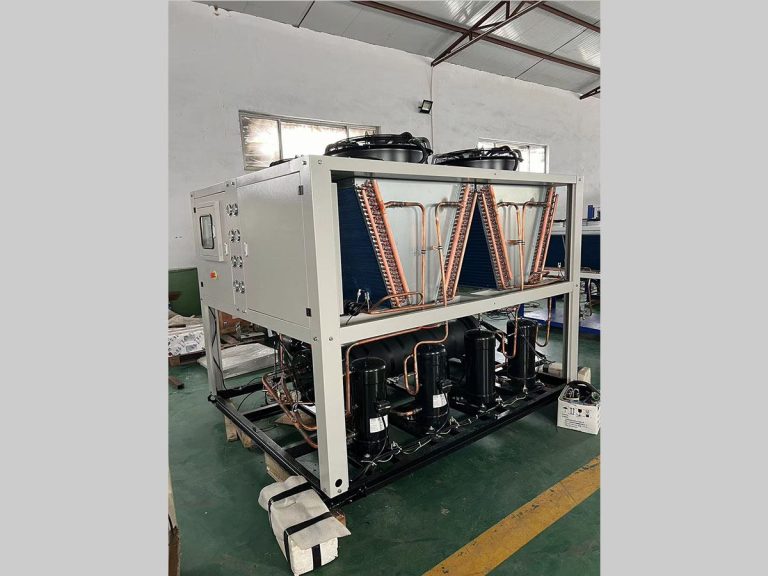

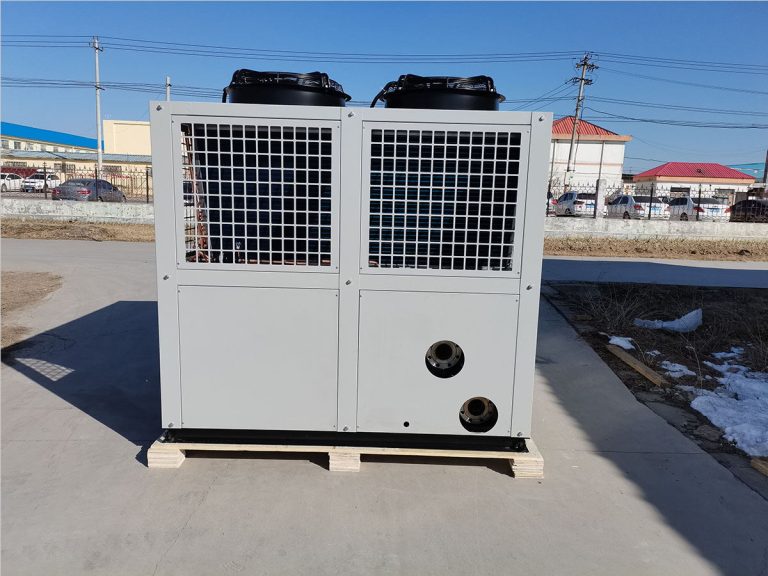

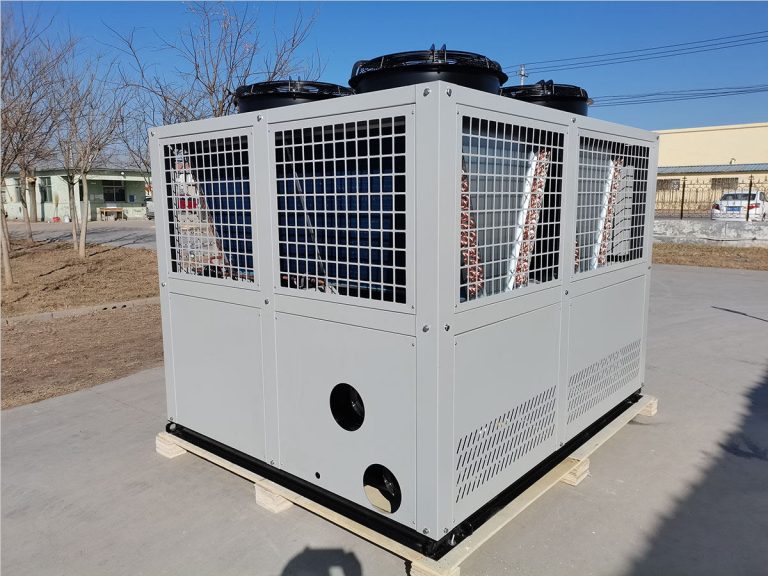

Air Cooled Water Chiller
Model: 20HP
Cooling capacity: 37.6kw
Input power:20.51
Refrigerant: R407C/R22
Power supply:380V/3PHASE/50HZ
Compressor: Hermetic scroll type
Evaporator: Shell and Tube
Technical Data Sheet for Air Cooled Water Chiller：
| Product | Air Cooled Water Chiller | |||
| Model | 20HP | |||
| Cooling capacity | Kw | 37.6kw | ||
| Input power | 20.51kw | |||
| Power supply | 3PHASE-380V-50HZ | |||
| Refrigerant | Type | R407C/R22 | ||
| Control type | Thermostatic expansion valve | |||
| Compressor | Type | Hermetic scroll type | ||
| Power(kw) | 8.7*2KW | |||
| Condenser | Type | High efficiency hydrophilic aluminum foil finned type | ||
| Power(kw) | 0.75*2 | |||
| Evaporator | Type | Shell and tube type | ||
| Flow rate(m3/h) | 7.73 | |||
| Inlet/Outlet pipe diameter (mm) | DN40 | |||
| Pump | Type | Centrifugal water pump | ||
| Power（kw） | 1.5kw | |||
| Lift(m) | 20 | |||
| Protection System | Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection. | |||
| L | 2100mm | |||
| W | 1000mm | |||
| H | 1700mm | |||
| Weight | kg | 850kg | ||
Characteristic-Air cooled chiller
This product adopts touch type waterproof / dustproof control panel,
the refrigeration temperature is adjustable from 3 to 30 degrees, the contactor and heat relay adopt Schneider of France ,
the control system adopts modular design, and is equipped with reverse phase protection, current overload protection, compressor high / low voltage protection and delay protection and other protection devices, if there is any fault, timely alarm and display the corresponding fault content.
1.This product adopts brand-new original imported compressor: Panasonic, Copeland, which makes the energy efficiency ratio of the product higher.
2.The condenser adopts the design of high efficiency fin type, and the standard evaporator adopts the design of high efficiency internal thread copper tube water tank coil and straight tube type, which can effectively improve the heat dissipation effect.
3.It is equipped with high efficiency dust net: it is more convenient to clean.
4.The pump adopts high flow and high lift precision pump, which is safe, quiet, energy-saving and durable.
5.The machine box adopts electrostatic powder and baking paint, which is beautiful and generous.
6.The machine is equipped with 304 stainless steel water tank, which is convenient for cleaning. The water tank is equipped with floating ball automatic water replenishment function, which can be used to measure and control the water level, so as to effectively save time for customers and facilitate the use.
Main Components-Air cooled chiller
| Item | Brand |
| Compressor | Panasonic |
| Evaporator | Chinese Brand |
| Condenser | Chinese Brand |
| Expansion Valve | EMERSON/DANFOSS |
| Controller | PUNP |
| Electric parts | SCHNEIDER |
| Filter Dryer | EMERSON/DNAFOSS |
| Water pump | CNP |
The air-cooled chiller can be widely used in various industries: for example, injection molding / blow molding / bottle blowing / extrusion / film blowing in the plastic industry. The chiller can accurately control the temperature in the relevant mold or container to shorten the molding cycle, speed up the product finalization, prevent the product from deformation and shrinkage, and improve the surface finish and perspective of plastic products. Also suitable for cooling: UV printing, CNC machine tools, electroplating, electrophoresis, ultrasonic cleaning, Beverage and brewery industry, medical equipment, laser welding and other water cooling industries.
