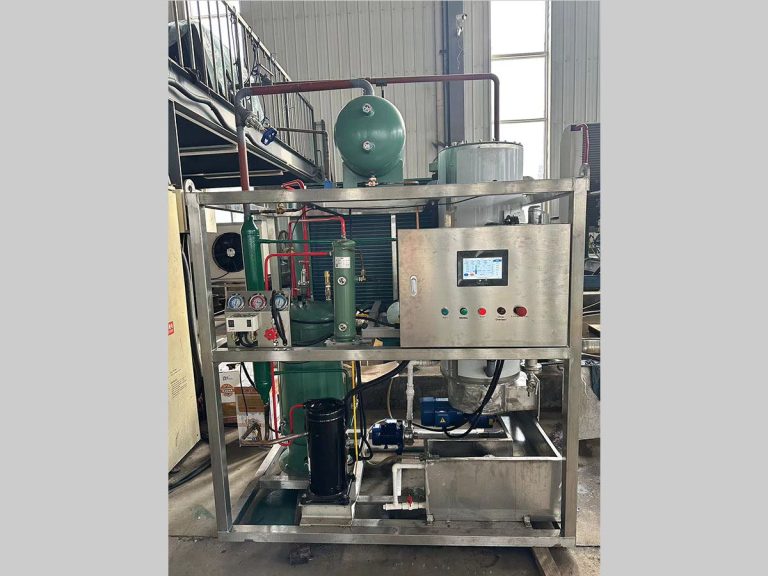

Commercial Scale 3Ton Tube Ice Machine
The operation of the small commercial tube ice machine is very simple and convenient. Just pour water into the water tank and set the ice making parameters, and the ice machine will automatically complete the ice making process according to the set parameters. The resulting ice cubes can be taken out through the outlet and used for the preparation of various cold drinks and beverages.
Small commercial tube ice machines are fast and can usually produce about 40-50 kilograms of ice per hour, with high ice production efficiency. Moreover, the quality of the ice cubes is uniform and pure, without impurities and odors, ensuring the quality of ice making.
The small commercial tube ice machine is characterized by its compact size and is suitable for commercial locations with limited space. It can be easily placed on the bar top or on the kitchen counter.
In addition, small commercial tube ice machines also have the advantages of energy saving and environmental protection. It uses high-efficiency refrigeration technology to reduce energy consumption and impact on the environment.
| 3Ton Tube Ice Machine Main Components | |||||
| Name | Brand | Model （mm) | Material | Origin | |
| 3000kg / 24h-Tube ice machine | |||||
| 一 | Ice system | ||||
| 1 | Ice evaporator | Shandong | 3Ton | SS 304 | China |
| 2 | Reducer | GONGJI | Taiwan,China | ||
| 3 | Circulating pump | CNP | China | ||
| 4 | Water level sensor | Fine | Taiwan,China | ||
| 二 | Refrigeration system | ||||
| 1 | Compressor | EMERSON | 15HP | USA | |
| 2 | Air condenser | Shandong | Italy | ||
| 3 | Condensing fan | MAER | Germany | ||
| 4 | A-L seperator | O&F | China | ||
| 5 | Oil seperator | O&F | China | ||
| 6 | Dry filter | O&F | USA | ||
| 7 | Solenoid valve | Danfoss | USA | ||
| 8 | Expansion valve | Danfoss | USA | ||
| 9 | liquid accumulator | Danfoss | China | ||
| 10 | H-L pressure control | Danfoss | Denmark | ||
| 11 | Liquid level indicator | Yinfeng | China | ||
| 三 | Control system | ||||
| 1 | PLC | LG | Multi-touch | Korea | |
| 2 | AC contactor | LG | Korea | ||
| 3 | Thermal relay | LG | Korea | ||
| 4 | Air switch | LG | Korea | ||
| 5 | Touch screen | Weinview | Taiwan,China | ||
3T tube ice machine technical parameter
| No. | Name | Model | Remark |
| 01 | Ice capacity | 3t/24h | |
| 02 | Ice diameter (mm) | φ29 | |
| 03 | Refrigeration capacity(kW) | 20.3KW | |
| 04 | Evaporating Temp. (℃) | -15 | |
| 05 | Condensing Temp. (℃) | 40 | |
| 06 | Power input (kW) | 11.91KW | |
| 07 | Compressor input power (kW) | 9.81KW | |
| 08 | Reducer power (kW) | 0.75KW | |
| 09 | Circulating pump (kW) | 0.55KW | |
| 10 | Condensing fan input (kW) | 0.8KW | |
| 11 | Power supply | 3P/220V/60Hz | |
| 12 | Feeding water pressure | 0.1Mpa－0.5Mpa | |
| 13 | Refrigerant | R404A | |
| 14 | Ambient Temp. | 35℃ | |
| 15 | Water Inlet Temp. | 20℃ | |
| 16 | Water Inlet Pipe | 1-1/4″ | |
| 17 | Weight | 1280 | |
| 18 | Dimension(mm) | 1700*1540*2610 |
