Industrial Scale 15 Ton Tube Ice Machine

Industrial Scale 15 Ton Tube Ice Machine

product description

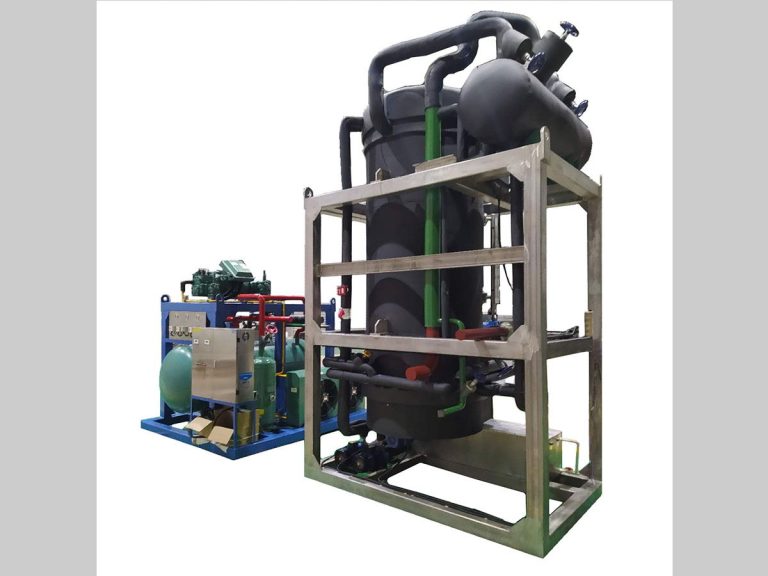

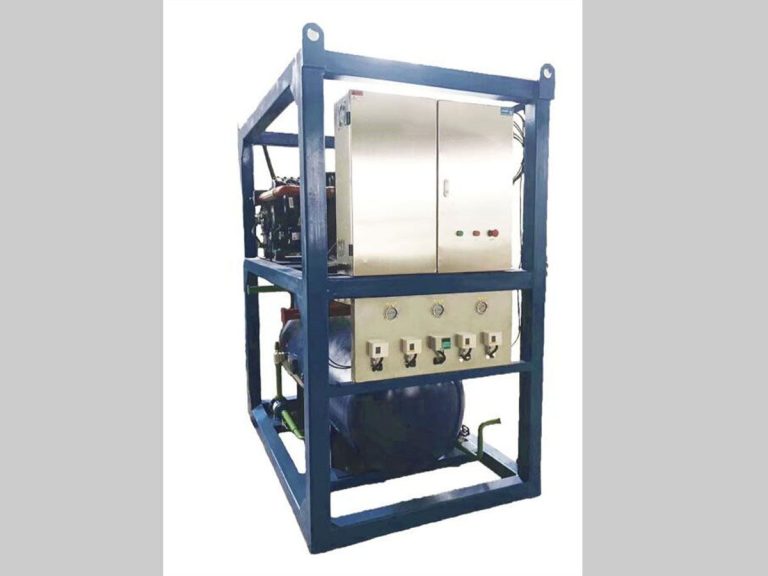

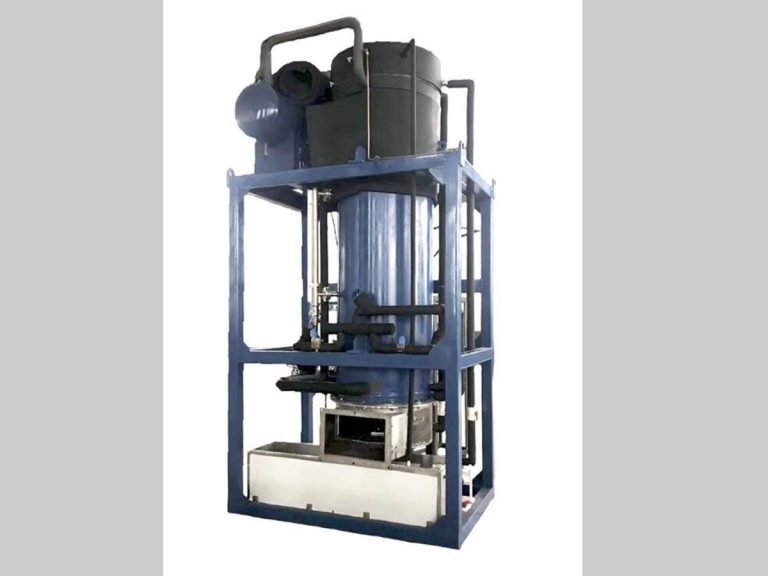

Industrial Scale 15 Ton Tube Ice Machine

The 15ton large industrial tube ice machine is very fast and can make a large amount of ice in a short time. This makes it very convenient to use in industrial production and can meet a large number of cooling needs. At the same time, the cooling effect of the large-scale industrial tube ice machine is also very good, and it can quickly cool the object to the required temperature to ensure the smooth progress of the production process.

Large industrial tube ice machines also feature accurate temperature control. It can accurately control the cooling temperature according to the needs of the production process to ensure product quality and safety. This is particularly important in some industries with high refrigeration and freezing requirements, such as the food and pharmaceutical industries.

In addition, large industrial tube ice machines have many other advantages. First of all, it uses advanced energy-saving technology to reduce energy consumption and environmental pollution to the greatest extent. Secondly, its operation is stable and reliable, it can work continuously for a long time and is not prone to failure. Thirdly, it has low maintenance cost, is easy to operate and does not require frequent repairs and maintenance.

15Ton tube ice machine technical parameter

No.  Name Model Remark
01 Ice capacity 15t/24h
02 Ice diameter (mm) φ29
03 Refrigeration capacity(kW) 139KW
04 Evaporating Temp. (℃) -15
05 Condensing Temp. (℃) 40
06 Power input (kW) 64.9KW
07 Compressor input power (kW) 27.1(×2)
08 Reducer power (kW) 1.5KW
09 Circulating pump (kW) 2.2KW
10 Condensing fan input (kW) 1.5KW
11 Feeding water pressure 0.1Mpa-0.5Mpa
12 Refrigerant R404A
13 Ambient Temp. 30℃
14 Water Inlet Temp. 20℃
15 Water Inlet Pipe 1-1/4″
16 Weight 4800
17 Dimension(mm) 2400*2100*2300
