Cooling Equipment

product description

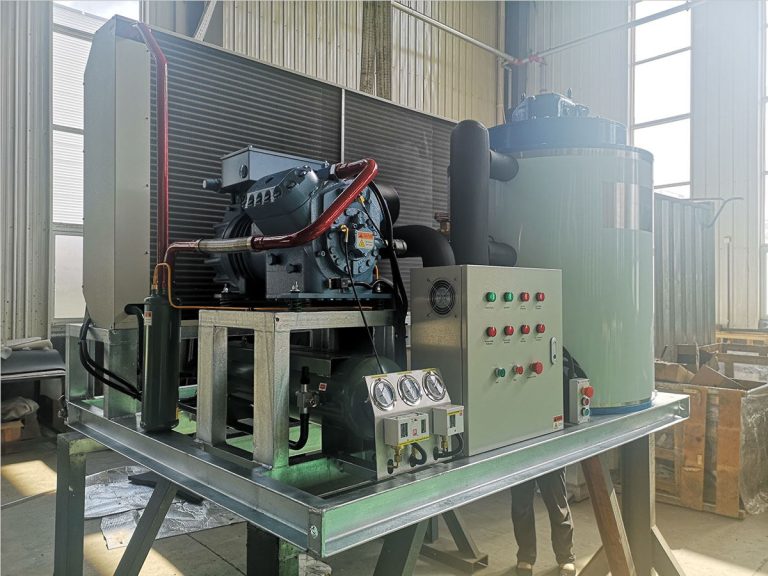

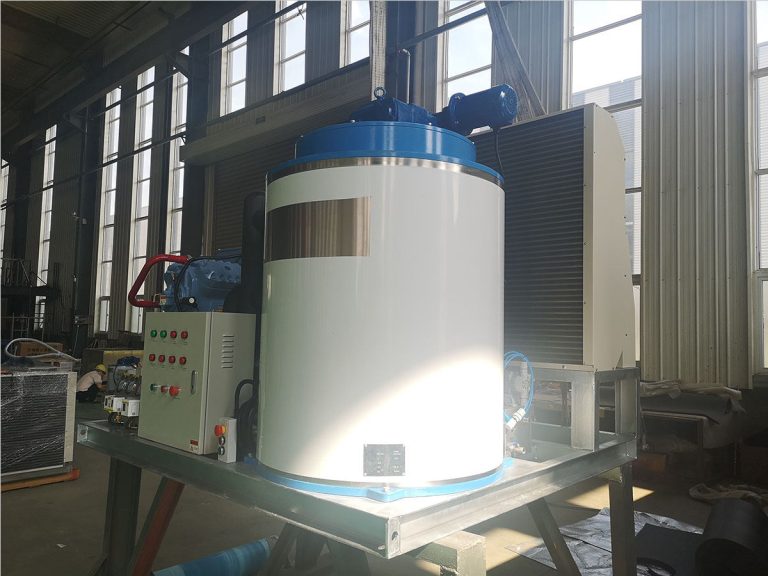

Industrial Scale 5 Ton Flake Ice Machine

The 5-ton industrial flake ice machine is an efficient and reliable industrial ice-making equipment, suitable for various occasions and environments, such as hotels, restaurants, seafood markets, fishing boats, ice and snow fields, etc. It uses advanced refrigeration technology and high-quality materials, has excellent ice-making performance and long life, and can meet users’ needs for ice cubes.

Theflake ice machine has an exquisite appearance, compact structure, small footprint, and simple and convenient operation. The machine is made of high-quality stainless steel, which is corrosion-resistant, high-temperature resistant, easy to clean, and can adapt to various harsh working environments. At the same time, it also has the characteristics of low noise and low energy consumption, providing users with a quiet and energy-saving ice making experience.

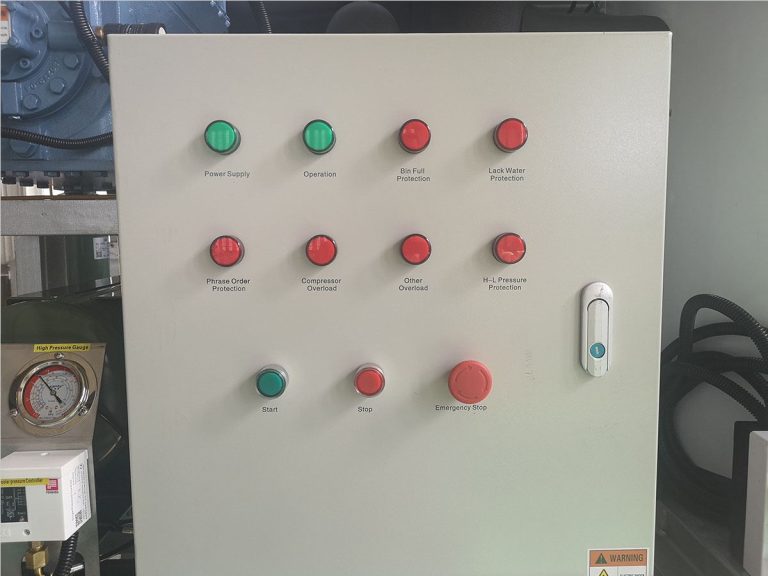

The 5-ton medium-sized industrial flake ice machine adopts a fully automatic control system and is easy to operate. You only need to set the required ice cube output and ice cube specifications, and the machine will automatically make ice. The ice machine is also equipped with an intelligent human-machine interface, which can display the working status and fault information of the ice machine in real time, making it convenient for users to monitor and repair.

The flake ice machine has high ice making efficiency and can quickly produce a large amount of ice cubes to meet the needs of users. The specifications of the ice cubes can be adjusted according to the user’s requirements, and various shapes such as square ice, cylindrical ice or herringbone ice can be selected. Ice cubes are uniform in size and density, easy to store and transport, and can maintain a cooling effect for a long time.

The 5-ton medium-sized industrial flake ice machine has multiple safety protection devices to ensure the safe operation of the machine. These include overload protection, overcooling protection, pressure protection, current protection, etc., which can effectively avoid machine damage and accidents. The ice making process of the ice machine is stable and reliable, and can provide continuous and stable ice making effect.

5Ton flake ice machine technical parameter

No.  Name Data Remark
01 Model 5T
02 The technical data based on 25℃ambient temp.

20℃water inlet temp.


03 The evaporating temperature -20℃
04 The condensing temperature 38℃
05 Power supply 3P/380V/50Hz
06 The ice thickness 1.6-2.3mm
07 Refrigerant R404A
08 Daily Output(Ton/24hrs) 5tons
09 Cooling Capacity(kw) 38.7
10 General Power(kw) 22.55
11 Compressor Input(kw) 20.5
12 Reductor Power(kw) 0.37
13 Cooling Mode Air Cooling
14 Water Inlet/ Drain Pipe 3/4”;1/2″
15 Weight(kg) 980
16 Dimension(mm) 2030*1500*1470
